CH-STC S sensor

Features:CH-STC adopts high quality alloy steel material, with high precision, high stability, low appearance, easy installation, fast and so on.It is suitable for testing machine, batching scale, mixing station, belt scale and packing scale, etc., and can be ...

OnlineTel
156-2185-0939

Product intro

Product

Product Name：CH-STC S sensor

Features：CH-STC adopts high quality alloy steel material, with high precision, high stability, low appearance, easy installation, fast and so on.It is suitable for testing machine, batching scale, mixing station, belt scale and packing scale, etc., and can be used for pulling force or pressing.

Range：500N(50kg)、1 kN(100kg)、2 kN(200kg)、3 kN(300kg)、5 kN(500kg)、10 kN(1t)、20 kN(2t)、30 kN(3t)、50 kN(5t)

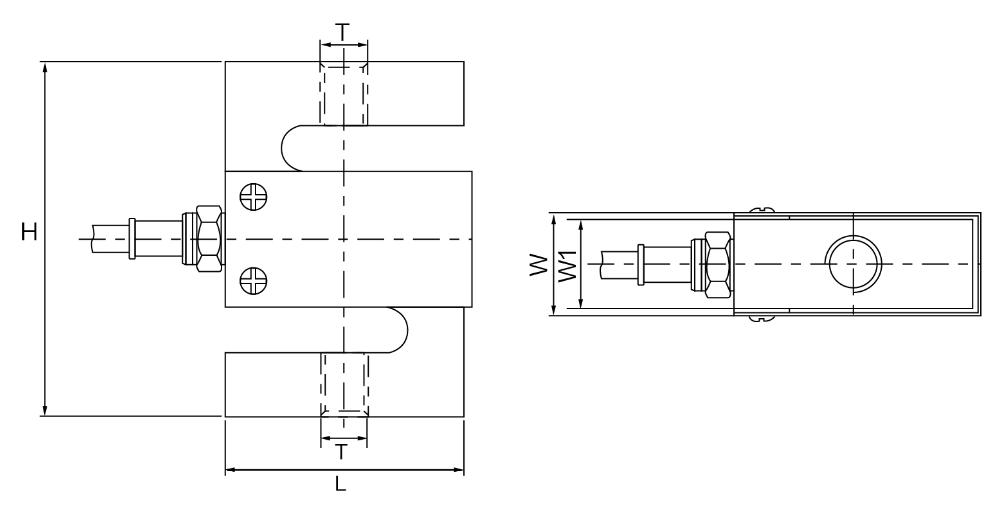

Dimensions：

Range（KN）	Range（kg）		L	W	W1	H	T
0.25,0.5,0.75	25,50,75	mm	50.8	26.7	12.7	63.5	M6x1
1	100，150	mm	50.8	23	19.1	76.2	M10x1.5
2.5	250	mm	50.8	30.4	19.1	76.2	M12x1.75
5,7.5	500,750	mm	50.8	25.4	19.1	76.2	M12x1.75
10,15	1000,1500	mm	50.8	31.8	25.4	76.2	M12x1.75
20，25,50	2000,2500,5000	mm	76.2	38.1	31.8	100.4	M20x1.5

Specifications：

Specifications
Rated Output	2.0mV/V±1%	Zero Balance	±1%F.S
Comprehensive Precision	0.03%F.S	Input Impedance	385±10Ω
Linearity/ Hysteresis	±0.03%F.S	Output Impedance	350±3Ω
Repeatability	±0.03%F.S	Insulation Impedance	≥5000MΩ
Creep	±0.03%F.S/30min	Recommended Excitation Voltage	5～15V/DC
Temp. Effect On Zero	±0.02%/10℃	Compensated temp. Range	-30℃～+70℃
Temp. Effect On Output	±0.02%/10℃	Safe Overload	150%F.S
Connection	Excitation：+ Red - Black Signal： + Green - White Shield： Thick Yellow
